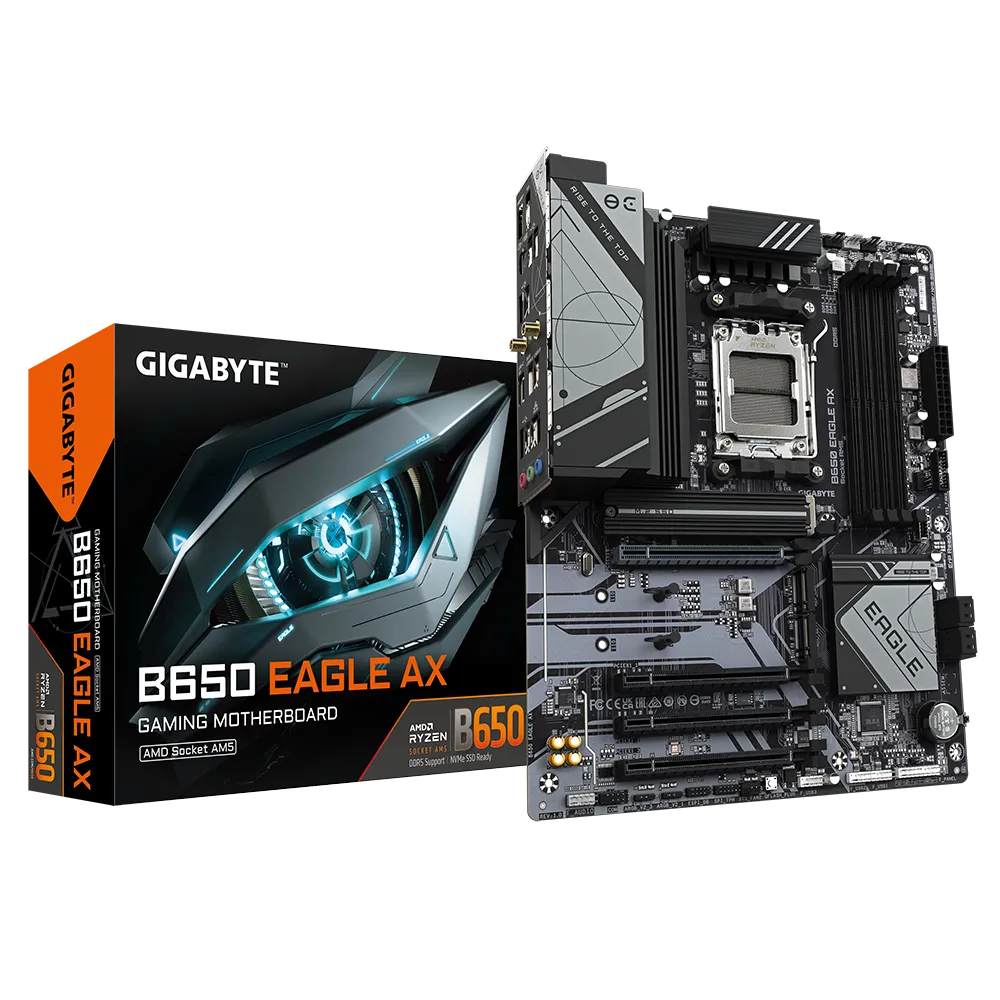

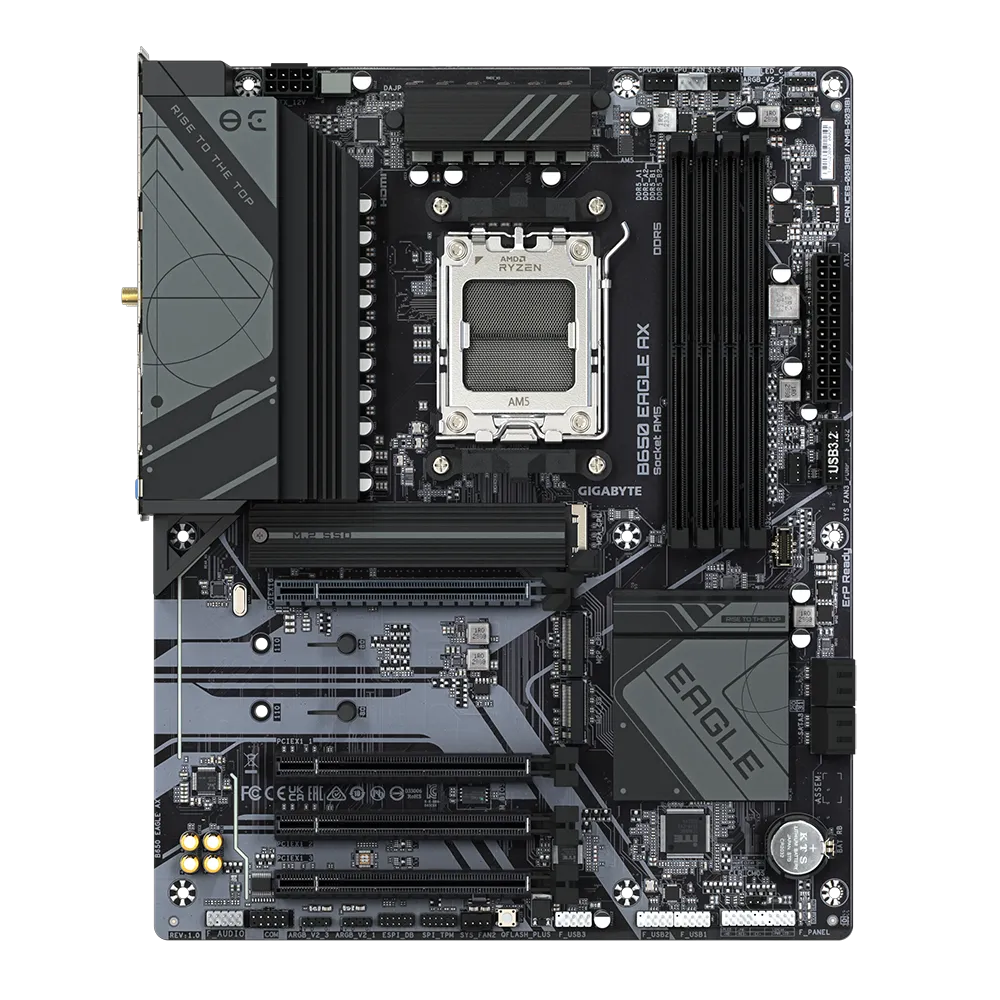

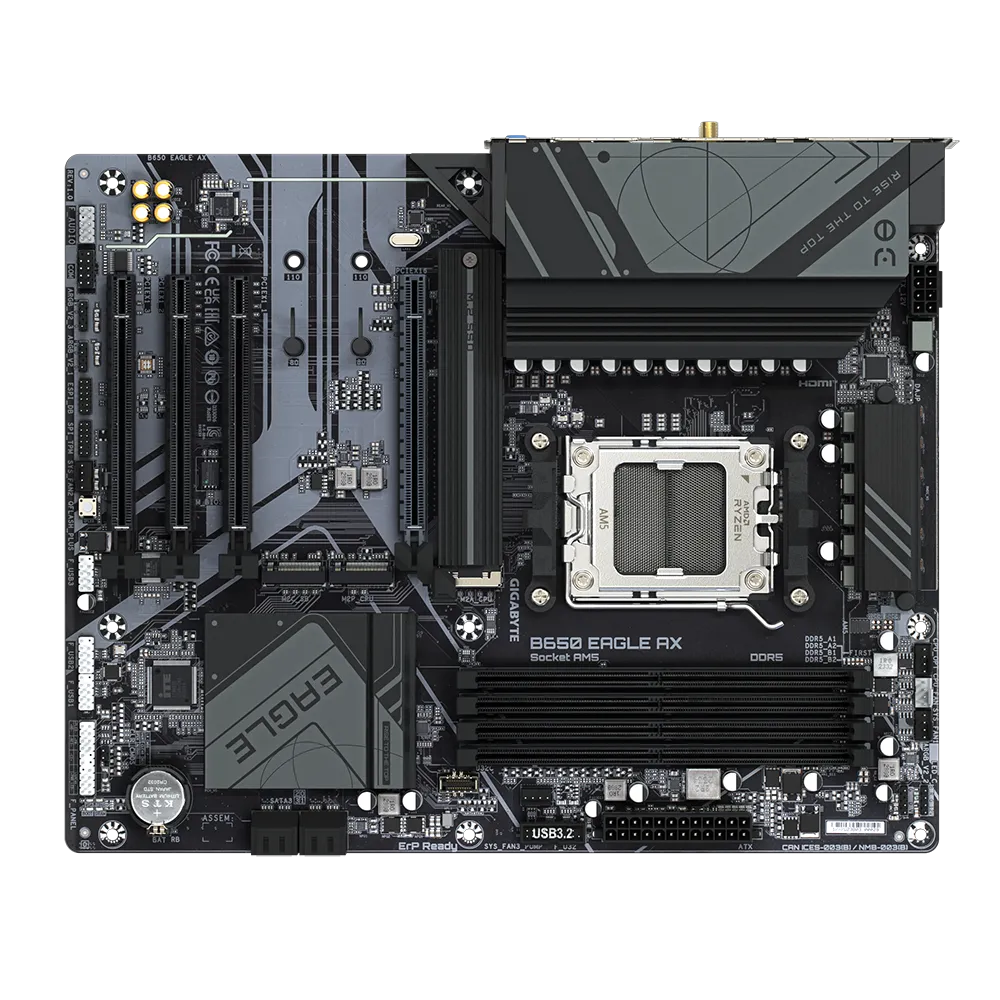

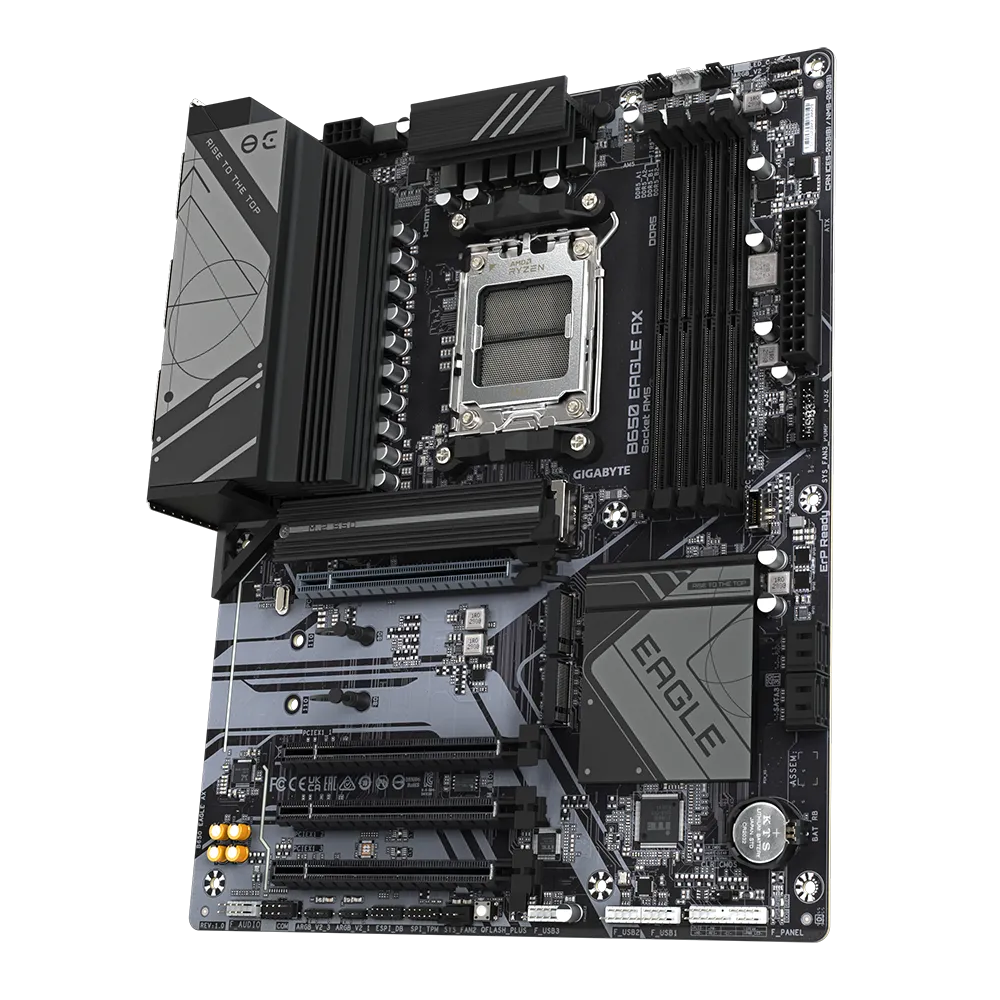

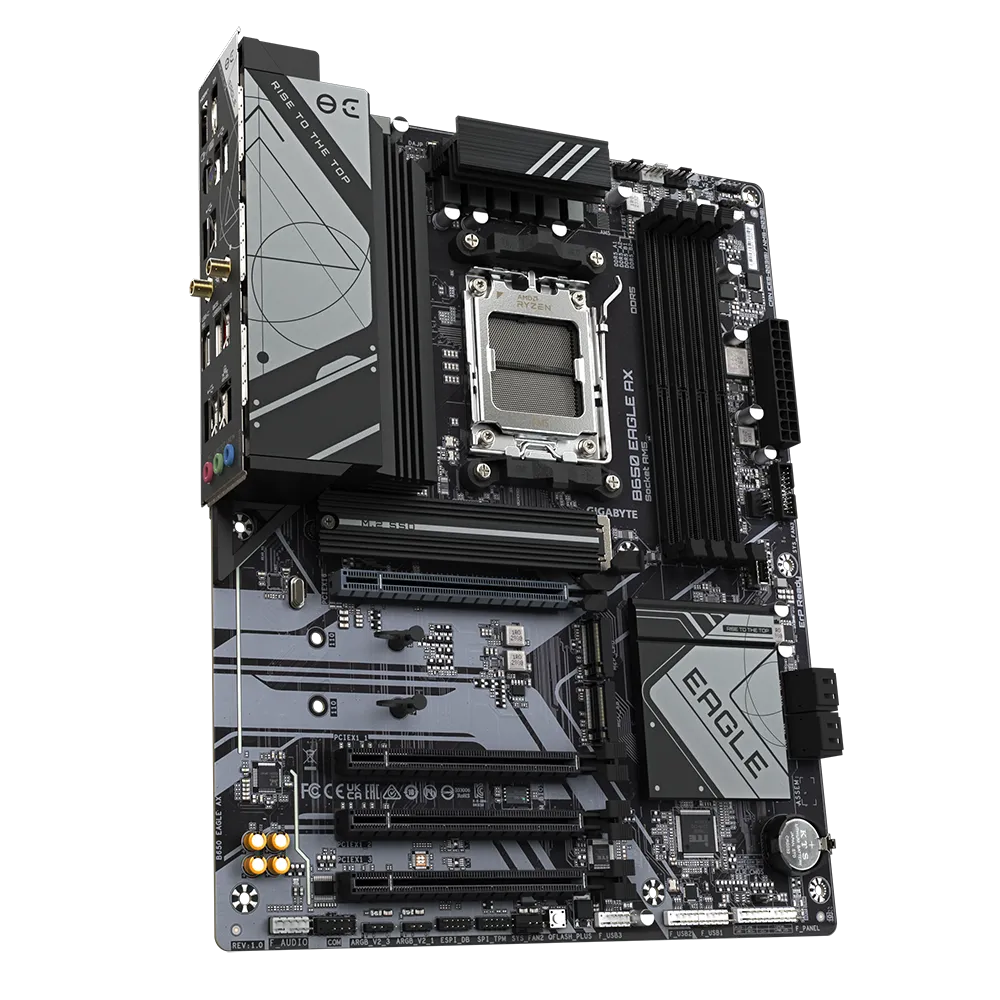

GIGABYTE B650 EAGLE AX Motherboard – AM5, DDR5, PCIe 5.0, Wi-Fi 6E, 12+2+2 VRM, 3× M.2, USB 3.2 Gen2, Smart Fan 6, Q-Flash Plus, ATX

CPU Support: AMD Ryzen™ 7000 / 8000 / 9000 Series Processors (Socket AM5)
Chipset: AMD B650
Memory: 4× DDR5 DIMM slots (Dual Channel), supports AMD EXPO™ & Intel® XMP Memory Modules
VRM Design: 12+2+2 Phases Digital VRM Solution
Storage:
3× M.2 slots (1× PCIe 5.0 x4, 2× PCIe 4.0 x4)
4× SATA 6Gb/s ports
Expansion Slots:
1× PCIe x16 slot with EZ-Latch Quick Release Design
2× PCIe x1 slots
Networking:
Wi-Fi 6E (802.11ax) with dedicated 6GHz band
Gigabit Ethernet LAN

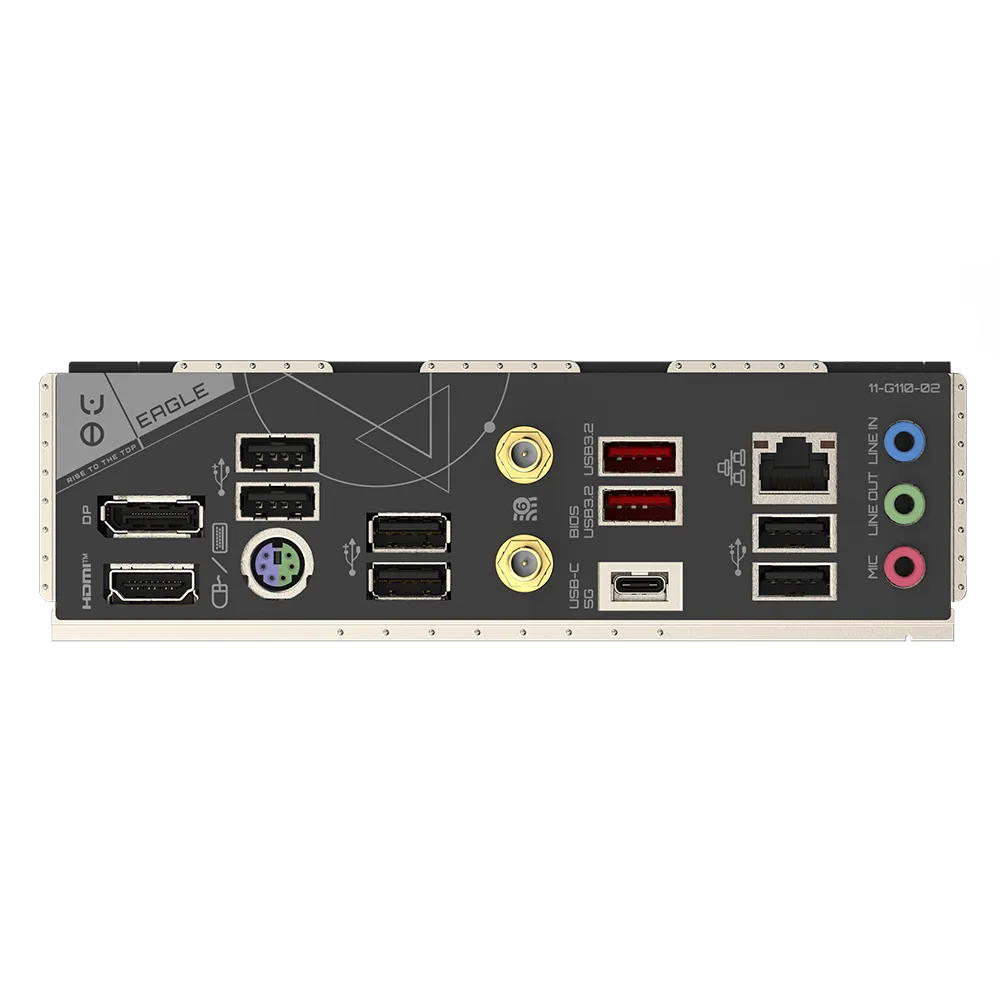

USB Ports:
Rear: 2× USB 3.2 Gen2, 1× USB 3.2 Gen1 Type-C®, 6× USB 2.0
Front: USB 3.2 Gen1 Type-C®
Display Outputs: 1× DisplayPort, 1× HDMI
Audio: 8-Channel HD Audio with High-End Audio Capacitors and Audio Noise Guard
Cooling Solutions:
Advanced Thermal Design with Fully Covered MOSFET Heatsinks
M.2 Thermal Guard
Smart Fan 6 with Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
DIY Friendly Features:
EZ-Latch: Quick Release Design for PCIe x16 Slot
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card
RGB Lighting: RGB FUSION with 3× Addressable LED Headers and 1× RGB LED Header
Form Factor: ATX
