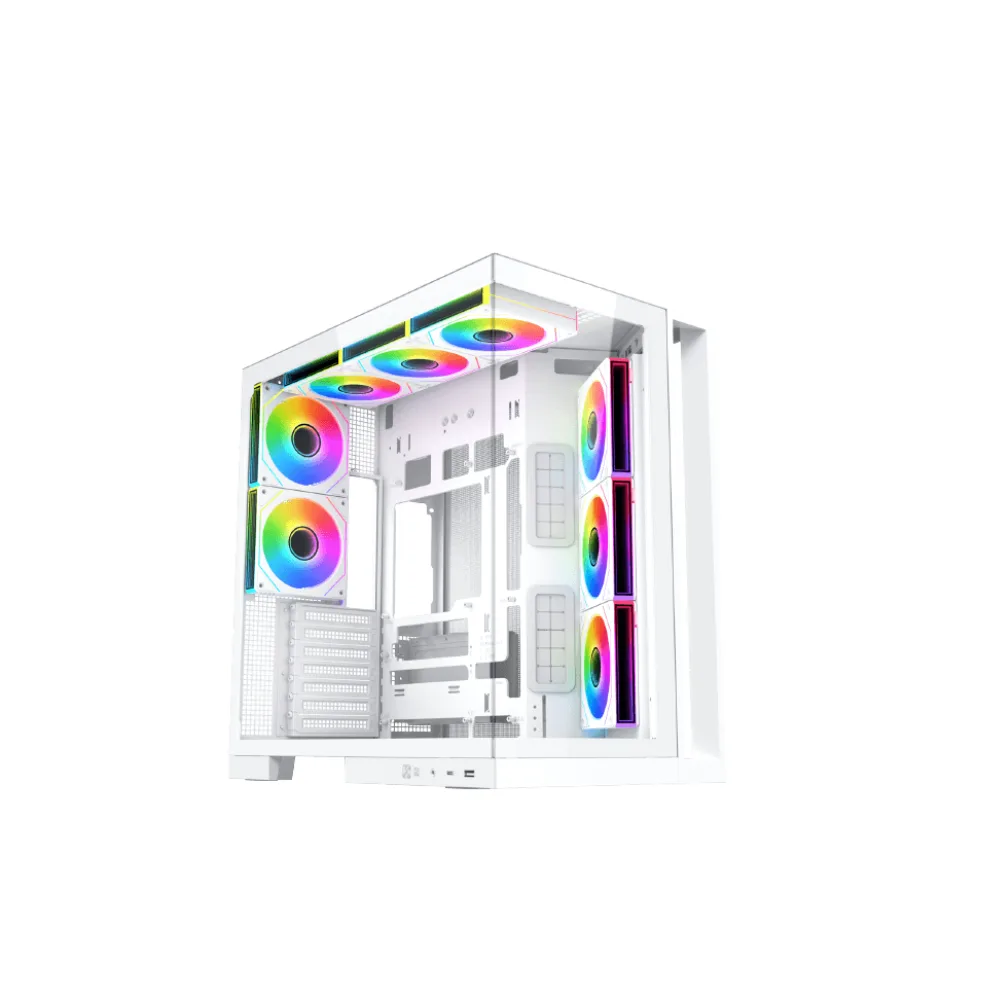

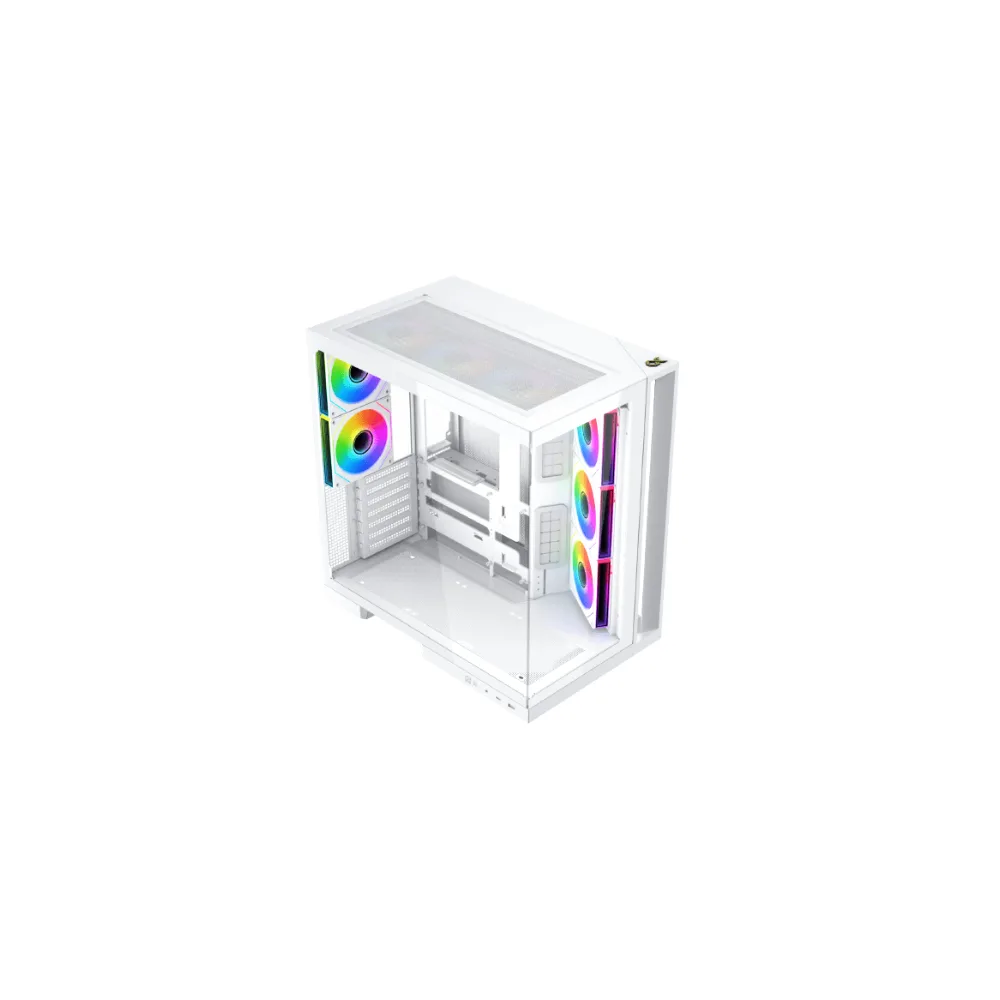

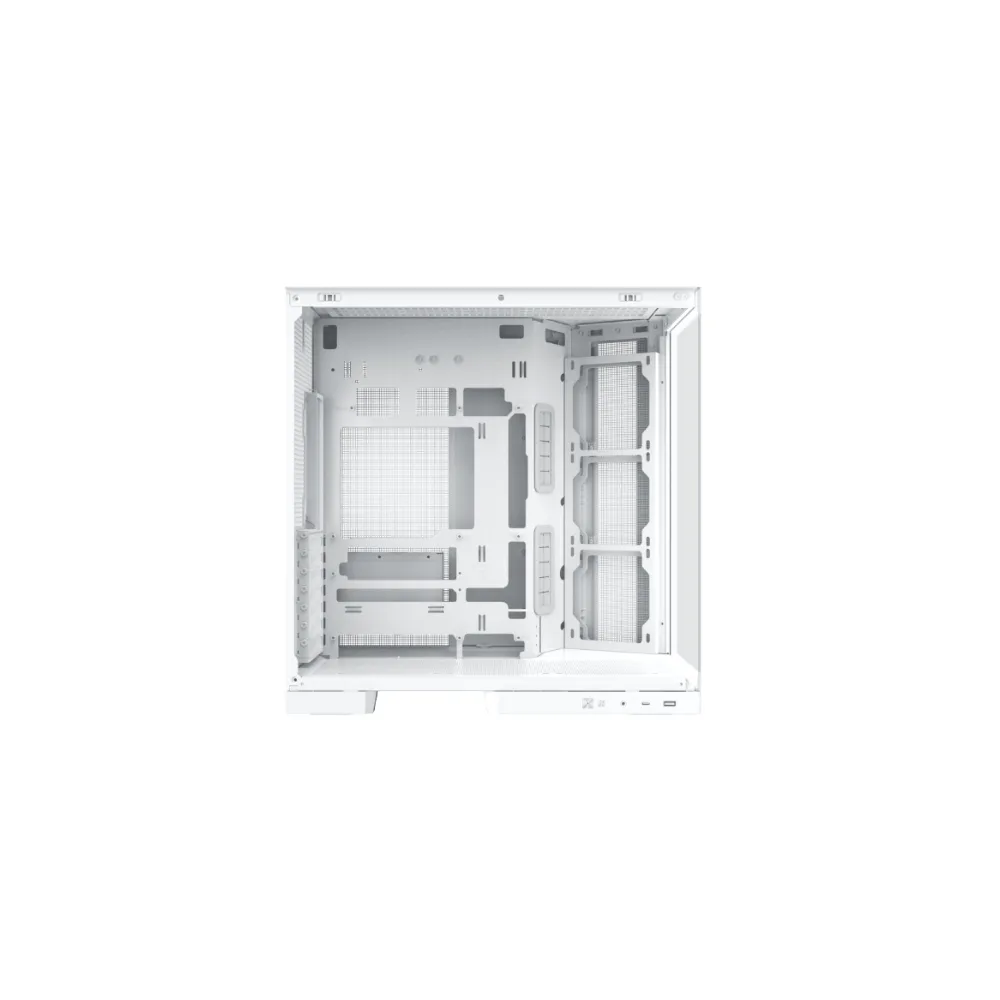

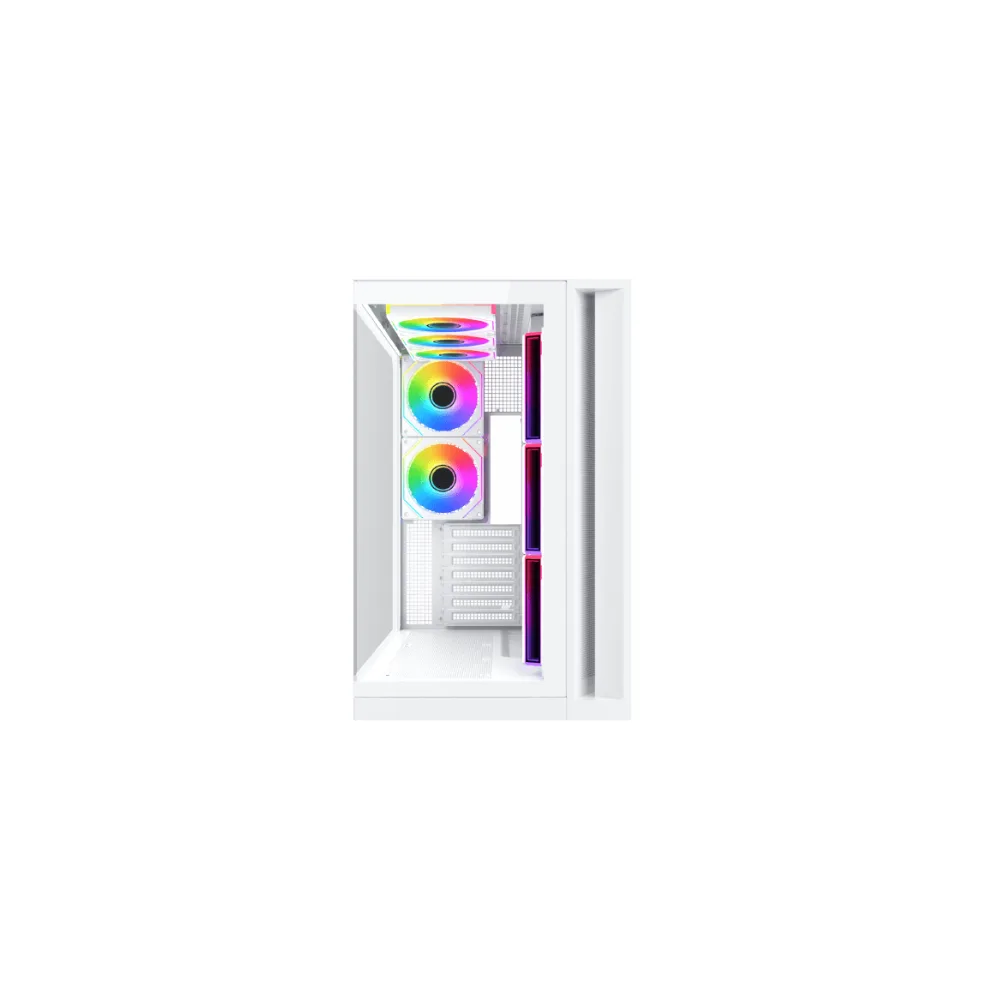

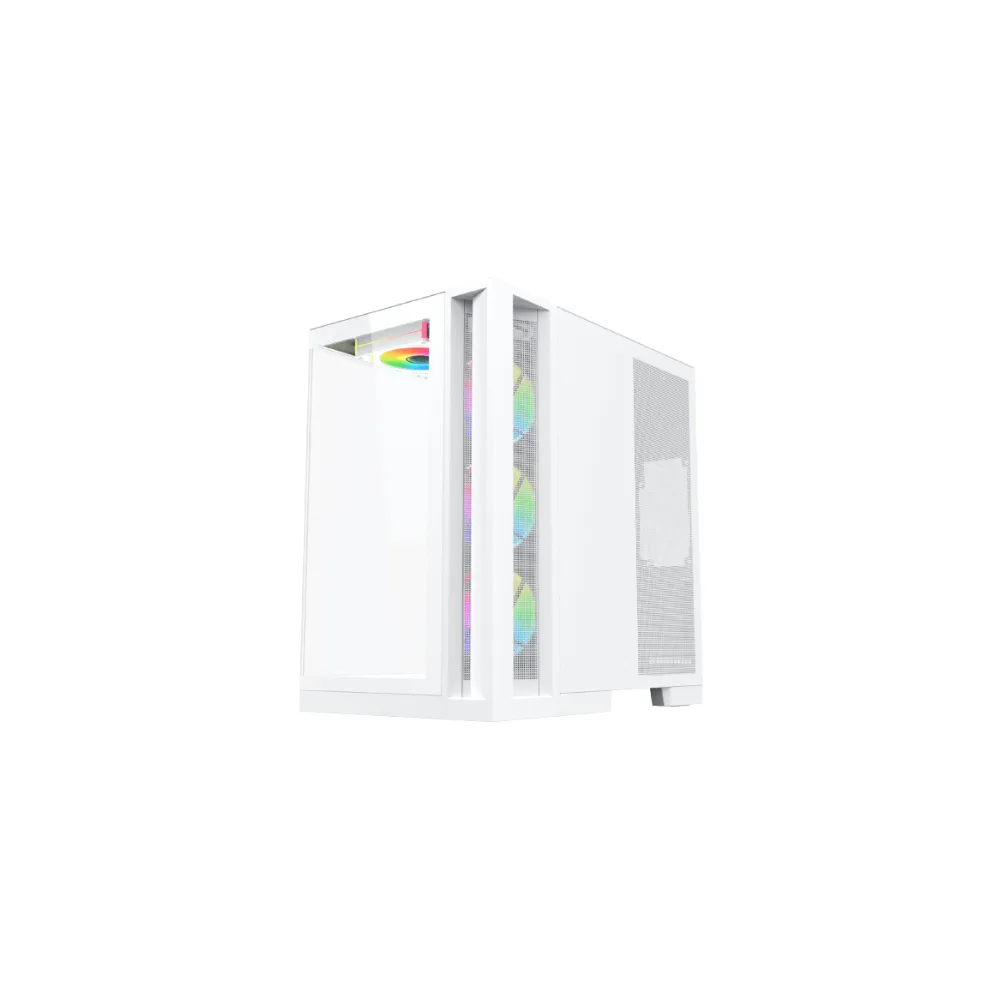

XIGMATEK AQUA 7 ARCTIC – E-ATX Mid-Tower PC Case

Product Type: E-ATX Mid-Tower PC Case
Series: AQUA 7 Arctic
Color: White
Material: Steel
SKU: EN49033

General

• Dimensions (L × W × H): 448 × 290 × 467 mm
• Power Supply Type: Standard PS2 ATX PSU
• Maximum PSU Length: 180 mm
• Expansion Slots: 7 Standard Slots

Motherboard Compatibility

• E-ATX: Up to 285 mm
• ATX: Supported, including Back-Plug Motherboards
• Micro-ATX: Supported, including Back-Plug Motherboards
• Mini-ITX: Supported

GPU Support

• Maximum GPU Length: 410 mm
• With Side Liquid Cooler: Up to 360 mm
• GPU Installation: Horizontal / Vertical
• Vertical GPU Bracket: Included

CPU Cooler Clearance

• Maximum CPU Cooler Height: 165 mm

Cooling Support

Top:

• 3 × 120 mm
• 2 × 140 mm

Side:

• 3 × 120 mm

Bottom:

• 3 × 120 mm

Rear:

• 2 × 120 mm
• Maximum Fan Support: Up to 11 Fans

Radiator Support

Top:

• 240 / 280 / 360 mm

Side:

• 240 / 360 mm

Bottom:

• 240 / 360 mm

Rear:

• 120 mm

Included Fans

• 6 × H22A PWM White Reverse Fans
• 2 × H22A PWM White Fans
• Total: 8 Pre-Installed Fans

Storage

SSD/HDD Mounting Bracket:

• 1 × 3.5″ + 1 × 2.5″
• 2 × 2.5″

HDD Cage:

• 2 × 3.5″

Front I/O

• USB Type-C: 1
• USB 3.0: 1
• HD Audio: 1
• Power Button: 1
• Reset Button: 1

RGB & Fan Control

• ARGB & PWM Remote Controller: Included
• ARGB Control: Supported
• PWM Fan Control: Supported
• Controller Power Limit: 5V – 40W Maximum
• Controller Power Limit: 12V – 36W Maximum
